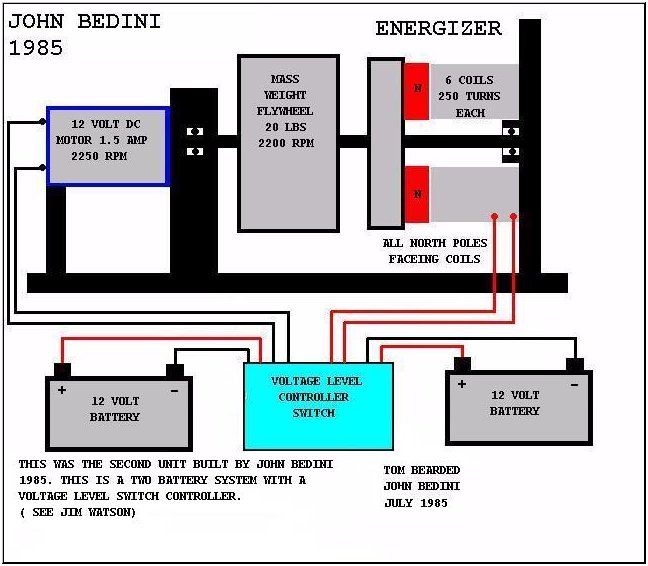

demonstration was followed by Jim Watson, a research scientist living in
Colorado Springs.Watson presented two working devices similar to John Bedini's.
The smaller device was running during Watson's entire presentation and the
audience could verify that the battery was being recharged constantly. The
larger device, which weighed 800 pounds, was demonstrated only for 10 minutes
due to practical reasons. During this time a constant load of 12kw could be
withdrawn from the device. The device itself was powered by two 12v car
SEE: ENERGY MACHINE PICTURES
Imagine having a small D.C. electrical
motor sitting on your laboratory bench powered by a common 12 volt battery.
Imagine starting with a fully charged battery and connecting it to the motor
with no other power input. Obviously, the motor is going to run off the battery,
but by conventional thinking it will stop when the battery runs down.
Impossible, you say. Not at all. That's
precisely what I have done and the motor is running now in my
It isn't running by the conventional
wisdom of electrical physics. It isn't running by the conventional rules of
electric motors and generators, but it is running.
It isn't something complex. It is pretty
simple, once one gets the hang of the basic idea.
It is running off the principles of
electromagnetics that Nikola Tesla discovered shortly before 1900 in his
Colorado Springs experiments. It is running off the fact that empty vacuum -
pure "emptiness", so to speak - is filled with rivers and oceans of seething
energy, just as Nikola Tesla pointed out.
It is running off the fact that vacuum
space-time itself is nothing but pure massless charge. That is, vcuum has a very
high electrostatic scalar potential - it is greatly stressed. To usefully tap
the enormous locked-in energy of that stress, all one has to do is crack it
sharply and tap the vacuum oscillations that result. The best way to do that is
to hit something resonant that is imbedded in the vacuum, then tap the resonant
stress of the ringing of the vacuum itself
In other words, we can ring something at
its resonant frequency and, if that something is imbedded in the vacuum, we can
tap off the resonance in vacuum stress, without tapping energy directly from the
embedded system we rang into oscillation, So what we really need is something
that is deeply imbedded in the vacuum, that is, something that can translate
"vacuum" movement to "mass" movement.
Well, all charged particles and ions are
already imbedded in the vacuum by their charged fluxes, so stressed oscillations
- that is, vacuum oscillations - can be converted into normal energy of mass
movement by charged particles or ions, if the system of charged particles or
ions is made to resonate in phase with our tapping "potential". For our purpose,
let's use a system of ions.
First we will need a big accumulator to
hold a lot of the charged ions in the system that we wish to shock into
oscillation. We need something that has a big capacitance and also contains a
lot of ions.
An ordinary battery filled with
electrolyte fits the bill nicely. While it is not commonly known, ordinary
lead-acid storage batteries have a resonant ionic frequency, usually in the
range of from 1-6 MHz. All we have to do is shock-oscillate the ions in the
electrolyte at their resonant frequency and time our "trigger"potential and
"siphon" current correctly. Then if we keep adding potential to trigger the
system we can get all that "potential" to translate into "free electrical
Look at it this way. Conventionally
"electrostatic scalar potential" is composed of work or energy per column of
charged particle mass. So if we add potential alone, without the mass flow, to a
system of oscillating charged particles, we add "physical energy" in the entire
charged particle system. In other words, the "potential" we add is converted
directly into "ordinary energy" by the imbedded ions in the system. If we are
clever we don't have to furnish any pushing energy to move pure potential
around. (For proof that this is possible, see Bearden's
"Toward a New Electromagnetics; Part IV; Vectors and Mechanisms
Clarified", Tesla Book Co,, 1983, Slide 19, page 43, and
the accompanying write-up, pages 10,11. Also see Y. Aharonov and V. Bohm,
"Significance of Electromagnetic Potentials in the Quantum
Theory", "Physical Review", Second
Series, Vol. 115, No. 3, Aug 1, 1959, pages 485-491. On page 490 you will find
that it's possible to have a field-free region of space, and still have the
potential determine the physical properties of the
Now this "free energy resonant coupling"
can be done in a simple, cheap system. You don't need big cyclotrons and huge
laboratories to do it; you can do it with ordinary D.C. motors, batteries,
controllers and trigger circuits.
And that's exactly what I have done. It's
real. It works. It is running now on my laboratory bench in prototype
But that's not all. I am also a
humanitarian. I am concerned for that little old widow lady at the end of the
lane, stretching her meager Social Security check as far as she can, shivering
in the cold winter and not daring to turn up her furnace because she can't
afford the frightful utility bills.
That's simply got to change and I may
well be the fellow who changes it. By openly releasing my work in this paper, I
am providing enough information for all the tinkerers and independent inventors
around the world to have at it. If I can get a thousand of them to duplicate my
device, it simply can't be suppressed as so many others have
So here it is. I have deliberately
written my paper for the tinkerer and experimenter, not for the scientist. You
must be careful, for the device is a little tricky to adjust in and synchronize
all the resonances. You'll have to fiddle with it, but it will work. Keep at
Also, we warn you not to play with this
unless you know what you are doing. The resonating battery electrolyte produces
hydrogen, and if you hit it too hard with a "voltage spike" you can get an
electrical spark inside the battery. If that happens, the battery will explode,
so don't mess with it unless you are qualified and use the utmost
But it does work. So all you
experimenters and pioneers, now's your chance. Have at it. Build it. Tinker with
it. Fiddle it into resonant operation. Then let's build this thing in quantity,
sell it widely, and get those home utilities down to where we can all afford
them - including the shivering little old lady at the end of the
And when we do, let's give men like me
the credit and appreciation they so richly deserve.
The Institute Of Electrical And Electronics Engineers, Inc
John C Bedini has constructed a laboratory model of a machine in which output energy exceeds input. It consists of a lead-acid battery which powers a small DC motor, which turns a magneto-like dynamo, which provides output energy to an electronics package, which in turn feeds timed (sclar?) pulses back to the battery terminals for recharging. As a demonstration, Bedini then removes the good battery and sequentially inserts fully discharged, dead batteries. Each of the dead batteries eventually receives a full charge. Stated differently, He starts with one good battery and four discharged batteries. At the end of the demonstration all five batteries are fully charged. This author has personally visited Bedini's lab many times , in company with technicians and professors of Physics and Electrical Engineering. None of us has been able to fault Bedini's findings. Each of my professorial friends, however, has requested that their names not be used for attribution, the inference being that their respective universities would not be understanding of heretical concepts.
John Bedini standing by small G-Field generator 1984
Copyright ŠJohn Bedini 1997
This page copied from the John Bedini free energy generator web page
email John Bedini
